| เน้น: | 120L/Min Ultra High Flow Rate,Expanded Pleated Filtration Area,Professional FPD Wet Process Design |
||
|---|---|---|---|

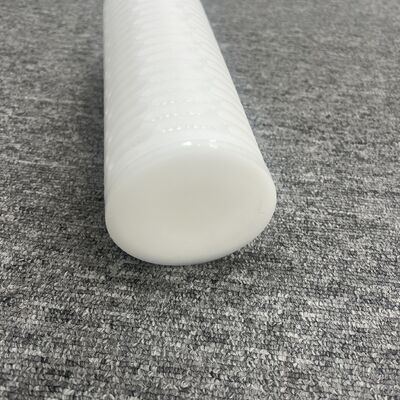

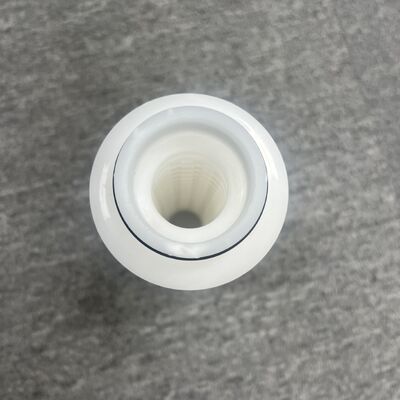

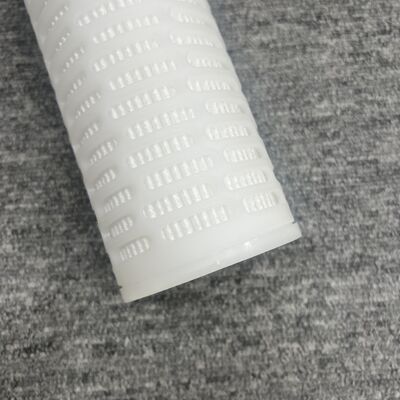

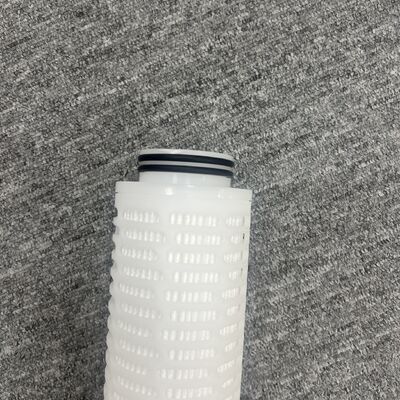

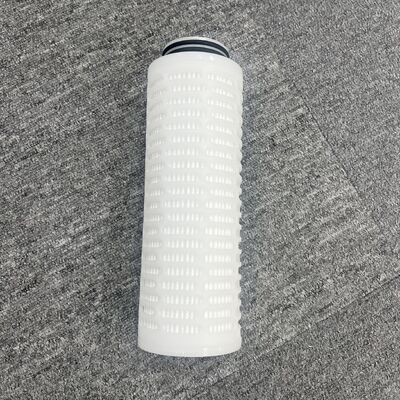

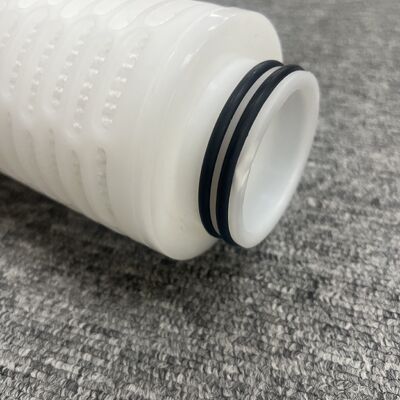

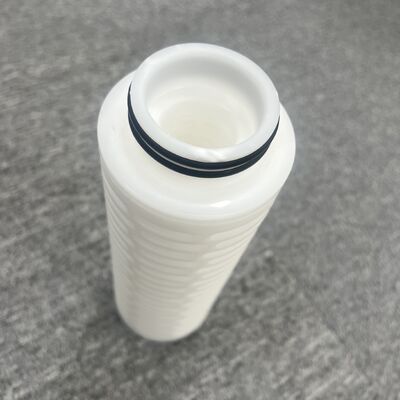

The 83 Series pleated filter cartridge is specifically engineered for wet process filtration in FPD (flat-panel display) manufacturing applications. Featuring an expanded filtration area and enhanced flow capacity, this cartridge delivers optimal performance for 5-6 generation production lines with flow requirements up to 120L/Min.
| Filter Media | PFL: PTFE (Hydrophobicity) PFLH: PTFE (Hydrophilic) EPS: PES HPPV: PP |
| Cage/Core/End Caps | Polypropylene (PP) |
| Seal Material | EPDM, Silicone, V |
| Filtration Rating | 0.05μm, 0.1μm, 0.22μm, 0.45μm, 1μm, 1.2μm, 3μm, 5μm, 10μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Positive Difference Pressure | 4bar/21℃ 2.4bar/80℃ |
| Series | Micron | Length | End Cap Type | Seal Material |
|---|---|---|---|---|
| 83 | PFL: 0020=0.2μm, 0050=0.5μm, 0100=1.0μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm | 10" | C5=222/Flat C6=226/Flat |
E=EPDM S=Silicone V=V |
| PFLH: 0020=0.2μm, 0050=0.5μm, 0100=1.0μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm | ||||
| EPS: 0005=0.05μm, 0010=0.1μm, 0022=0.22μm, 0045=0.45μm, 0065=0.65μm, 0120=1.2μm, 2000=20μm, 4000=40μm, 7000=70μm, 9000=90μm | ||||
| HPPV: 0050=0.5μm, 0100=1.0μm, 0150=1.5μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm |
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
China Domestic Offices: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
Global Branches: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
