รายละเอียดสินค้า:
|

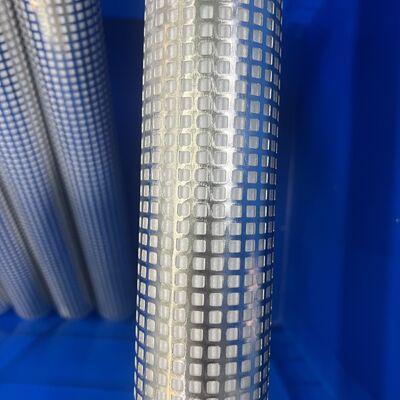

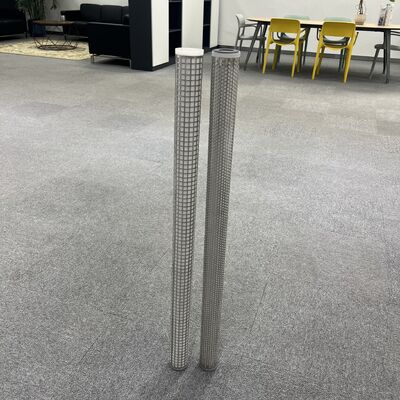

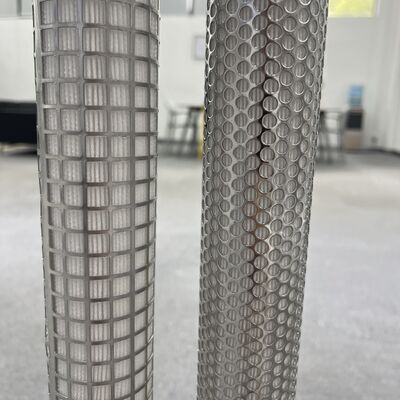

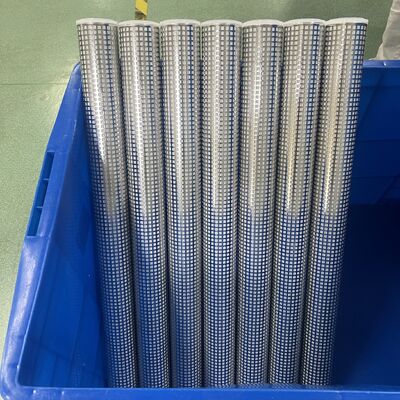

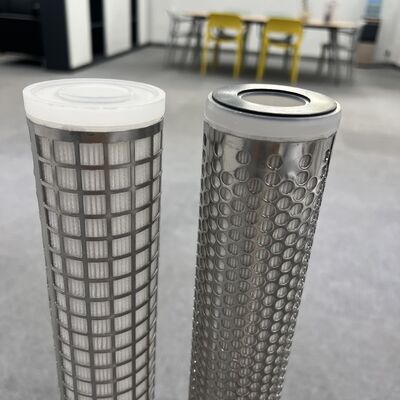

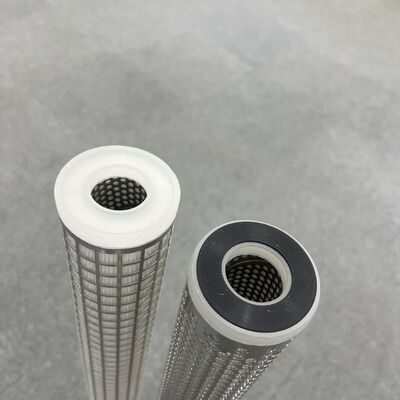

| เน้น: | PLZ Series PP Pleated Filter Cartridge Metal Outer Cage,Temperature Exceeds 50℃,Stainless Steel Outer Cage |
||
|---|---|---|---|
| Item | Technical Parameters |
|---|---|
| Filter medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP)/Stainless Steel |
| Outside diameter | 2.7" (68.5mm) |
| Length | 10", 20", 30", 40" |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ | |
| Material Constructions | |
| Filter media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End caps | Polypropylene (PP) |
| Seal material | Silicone, NBR, FKM, EPDM |
Shanghai Pullner Filtration Technology Co.,LTD.
Since: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.
Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).
Q1: What is the brand name of this product?
A: The brand name is PULLNER.
Q2: What is the model number of this product?
A: The model number is PLZ.
Q:3 Where is this product manufactured?
A: This product is made in China.
Q4: What is the main function of this product?
A: The main function of this product is to filter beverages.
Q5: What is the recommended usage time for this product?
A: The recommended usage time for this product is 6-12 months.
