รายละเอียดสินค้า:
|

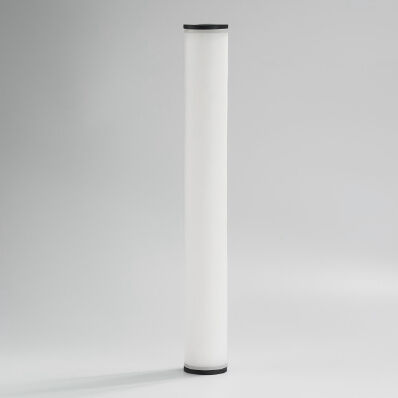

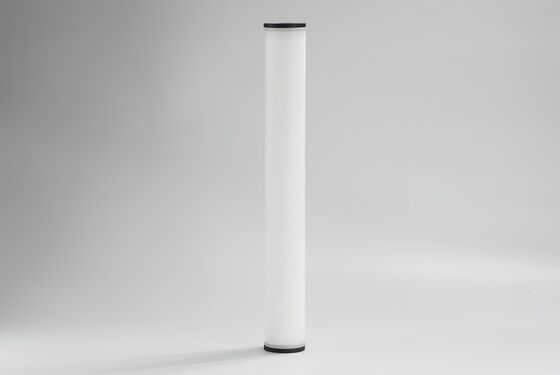

| เน้น: | Continuous Polypropylene Filter Cartridge,Multi-layer Winding Filter Cartridge,Larger Filtration Area Filter Cartridge |
||
|---|---|---|---|
| Material: | PP | Length: | 10", 20", 30", 40" |
|---|---|---|---|
| OD: | 69mm | Micron: | 0.1um, 0.22um, 0.45um, 0.65um |
| Filter Area: | 0.6-0.7 Square Meter | Max. Operating Temperature: | 80 ℃ |
| Flowing Hot Water Sterilization: | 85℃/30min | ||
| Highlight: |
0.45um Food and Beverage Water Filter,0.45um polypropylene sediment filter,ISO14001 polypropylene sediment filter |
||
Product Material and Technical Parameters
| Filter Media | Polypropylene |
| Support/Drainage | Polypropylene |
| Core/Cage/End Cap | Polypropylene |
| Maximum Operating Temperature | 80°C |
| Maximum Operating Differential Pressure |
3.0 bar / 21°C 1.2 bar / 90°C |
Ordering Information
WPP 0500 10 C1 S
| Series | Micron | Length | End Cap Type | Seal Material | ||||||
| 0010 | =0.1μm | 0500 | =5.0μm | 05 | =5" | W | =No Gasket(standard) | E | =EPDM | |
| 0020 | =0.2μm | 1000 | =10μm | 10 | =10" | H | =PE Gasket | S | =Silicone | |
| WPP | 0050 | =0.5μm | 2000 | =20μm | 20 | =20" | C1 | =226/Spear | V | =Viton |
| 0100 | =1.0μm | 4000 | =40μm | 30 | =30" | C3 | =222/Spear | P | =FEP | |
| 0300 | =3.0μm | 5000 | =50μm | 40 | =40" | C5 | =222/Flat | W | =None | |
| C9 | =DOE | |||||||||
